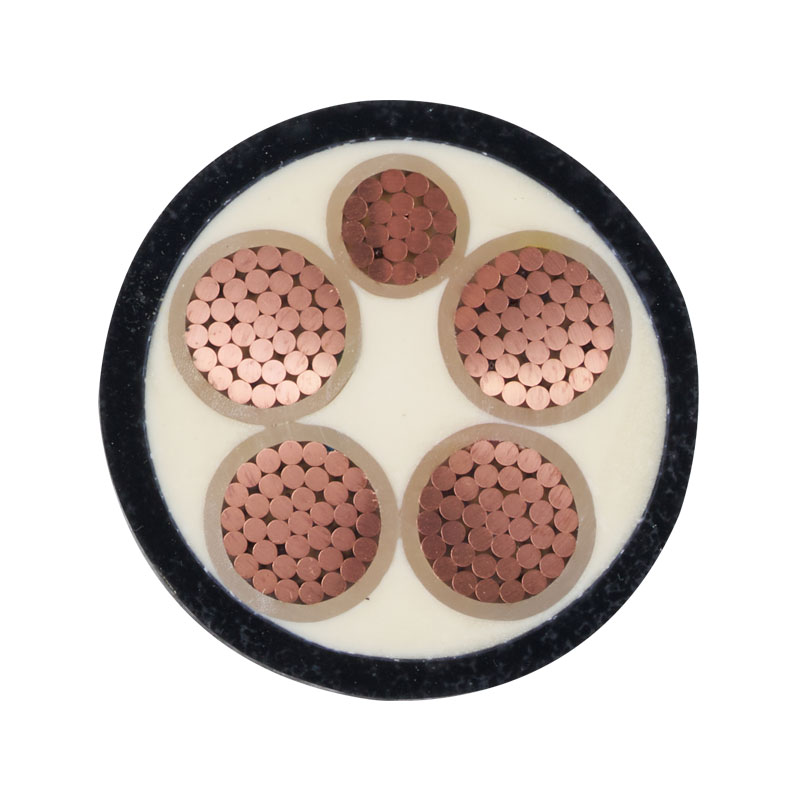

Irradiated XLPE Insulated LSZH Flame Retardant Polyolefin Sheathed Power Cable
Mold: WDZ-YJY
Irradiated XLPE Insulated LSZH Flame Retardant Polyolefin Sheathed Power Cable is a low-smoke, halogen-free power cable that combines cross-linked polyethylene insulation with LSZH polyolefin sheath materials. It provides reliable electrical transmission with improved safety performance in environments where smoke control and flame resistance are important.
The cable structure integrates the advantages of an XLPE Power Cable with enhanced insulation stability and the safety characteristics of an LSZH Cable, making it suitable for modern power distribution systems requiring reliable operation and environmental protection.
Core Features
Stable Electrical Performance: 0.6/1kV rated voltage supports reliable power distribution in low-voltage electrical systems.
High Temperature Resistance: XLPE insulation allows continuous conductor operation up to 90℃ for long-term electrical stability.
Short-Circuit Protection Capability: Supports short-circuit temperatures up to 250℃ for a maximum of 5 seconds, improving system safety during fault conditions.
Low Smoke Safety Performance: LSZH polyolefin sheath material helps reduce smoke generation and halogen release during combustion.
Flame Retardant Reliability: Complies with IEC 60332 series flame retardant standards to support safer cable applications.
Durable Insulation Structure: Cross-linked polyethylene insulation provides strong resistance to heat aging and maintains stable insulation performance over long service periods.
OEM Customization Service
Insulated LSZH Flame Retardant Polyolefin Sheathed Power Cable supports flexible customization options for different project requirements:
Cable Specification Customization: Customize conductor size, cable structure, and electrical parameters according to application needs.
Voltage Requirement Adjustment: Support different voltage specifications based on project standards.
Sheath Material Options: Provide LSZH sheath solutions according to safety and environmental requirements.
Length Customization: Supply customized cable lengths for different installation conditions.
Identification Customization: Provide customized cable marking, labeling, and identification solutions.
Application Scenarios
Parameter Details
FAQ
LSZH Flame Retardant Polyolefin Sheathed Power Cable is widely used in commercial buildings, industrial facilities, transportation systems, and public infrastructure where electrical safety and low smoke performance are required.
High-Rise Buildings: Used for power distribution, emergency circuits, and electrical systems where an LSZH Cable solution helps reduce smoke and harmful gas release during fire conditions.
Industrial Facilities: Applied in factories, workshops, and production areas requiring stable power transmission and flame retardant protection.
Transportation Projects: Suitable for airports, subway stations, tunnels, and railway facilities where safety standards require reliable XLPE Power Cable performance.
Data Centers & Communication Facilities: Supports power supply systems where cable reliability, flame resistance, and low smoke characteristics are important.
Public Buildings: Used in hospitals, schools, and commercial complexes for safe and efficient electrical distribution.
| No | Type | Designation | Flame retardancygrade |
|||||||||||||||||||||||||||||||||||||||||||||||||
| 5 | WDZ-YJ(F)E WDZ-YJ(F)Y |
(Irradiated)XLPE insulated low-smoke, free-halogen flame-retardancy polyolefin sheathed power cables |
A.B.C | |||||||||||||||||||||||||||||||||||||||||||||||||
| WDZ-YJ(F)E23 WDZ-YJ(F)Y23 |
(Irradiated)XLPE insulated steel tape armored low-smoke, free-halogen flame-retardancy polyolefin sheathed power cables | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Applicable place | Section area | Flame-retardancy grade | ||||||||||||||||||||||||
| Special class First class | 50mm2 and above | B class | ||||||||||||||||||||||||
| 35mm2 and above | C class | |||||||||||||||||||||||||
| 50mm2 and above | C class | |||||||||||||||||||||||||
| 35mm2 and above | D class | |||||||||||||||||||||||||
| Second class, third class | All area | D class | ||||||||||||||||||||||||
1. What is Irradiated XLPE Insulated LSZH Flame Retardant Polyolefin Sheathed Power Cable used for?
It is mainly used in power distribution systems, commercial buildings, industrial projects, transportation facilities, and other applications requiring flame retardant performance.
2. What are the advantages of an LSZH Cable compared with traditional cable sheaths?
An LSZH Cable uses low-smoke, halogen-free sheath material, helping reduce harmful gas emissions and improve safety during fire situations.
3. Why is XLPE insulation used in this type of power cable?
XLPE insulation provides good thermal stability, electrical insulation performance, and resistance to aging during long-term operation.
4. Can this cable be used in high-temperature environments?
Yes. The XLPE insulation structure supports continuous operation under elevated temperatures while maintaining electrical reliability.
5. What information should be provided when purchasing an XLPE Power Cable?
Purchasers should confirm cable size, voltage requirements, installation environment, operating conditions, and applicable standards before ordering.
-
