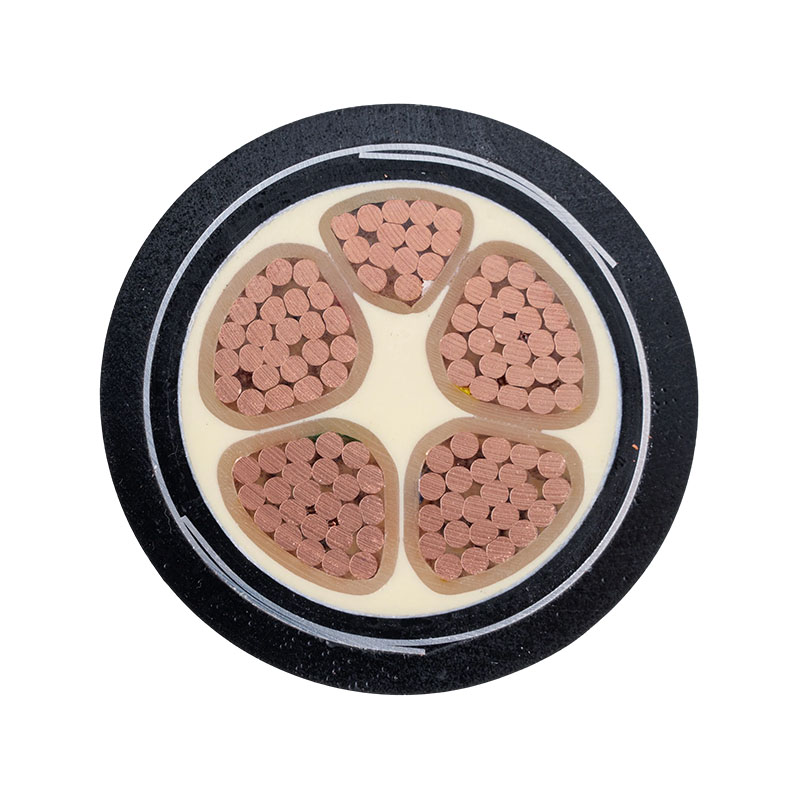

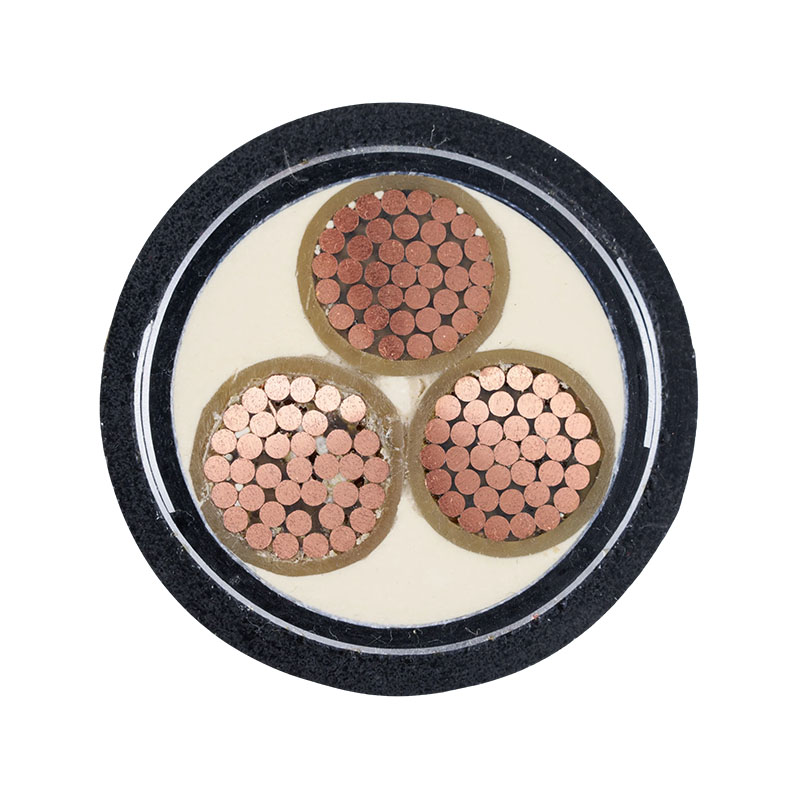

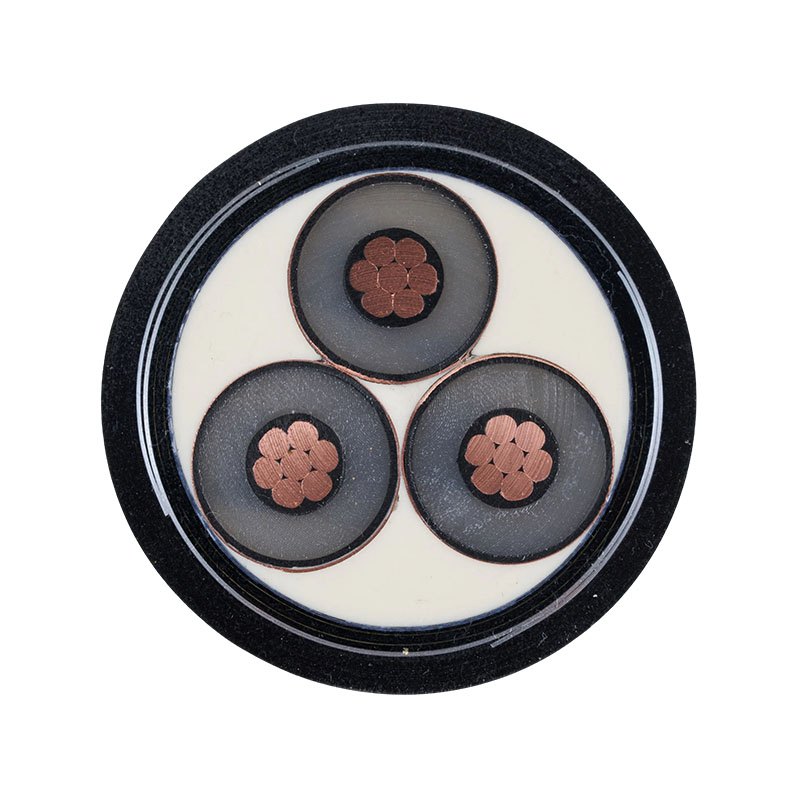

Steel Tape Armored XLPE Insulated Power Cable YJV22
Mold: YJV22
Steel Tape Armored XLPE Insulated Power Cable YJV22 is a power transmission cable featuring enhanced mechanical protection and stable electrical performance. It combines XLPE insulation, steel tape armoring, and PVC sheath to provide reliable operation in environments requiring stronger protection and long-term durability.
Core Product Features
Strong Mechanical Protection: Steel tape armoring improves radial pressure resistance and helps protect cables from external damage during installation and operation.
High Temperature Performance: XLPE insulation supports a conductor operating temperature of 90°C, ensuring stable electrical performance for continuous power transmission.
Short-Circuit Safety: Withstands conductor temperatures up to 250°C during short circuits lasting up to 5 seconds, improving fault protection capability.
Underground Durability: The armored structure enhances resistance to external pressure, rodent damage, and termite risks in buried applications.
Chemical Resistance: PVC sheath provides resistance to acids, alkalis, and aging, maintaining stability in humid or chemically affected environments.
Long Service Life: The cable structure supports a designed service life of over 30 years, reducing maintenance requirements.
OEM Customization Options
XLPE Insulated Power Cable supports flexible customization for different projects, brands, and supply requirements:
Structure Customization: Supports conductor specifications, insulation thickness, steel tape armoring, and sheath configuration adjustments.
Appearance Customization: Provides sheath colors, surface printing, LOGO marking, and identification customization.
Length Customization: Supports customized cable lengths starting from 100 meters.
Packaging Customization: Offers packaging solutions based on transportation and storage requirements.
Project Support: Provides bulk production, technical documents, and specification matching services.
Application Scenarios
Parameter Details
FAQ
XLPE Insulated Power Cable is widely used in projects requiring safe power transmission and additional mechanical protection, including:
Underground Power Networks: Suitable for buried cable systems with requirements for pressure resistance, soil protection, and mechanical durability.
Industrial Facilities: Applied in factories and production areas requiring stable power distribution and reliable cable performance.
Commercial Buildings: Used in large buildings, public facilities, and commercial projects for continuous power supply.
Infrastructure Projects: Suitable for roads, transportation systems, and other large-scale engineering applications.
Nominal cross-sectional area of conductor (mm²) |
Insulation thickness (mm) |
Inner sheath thickness (mm) |
Steel tape diameter (mm) |
Sheath thickness (mm) |
Approx. overall diameter of cable(mm) |
Approx. weight of cable (kg/km) | D.C. resistance of conductor (Ω/km) | Testing voltage A.C. | Insulation resistance 90℃ | Current rating |
||||||||||||||||||||||||||||||||||||||||||
| In air(A) | Direct in soil(A) | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Cu | Cu | (kV/5min) | MΩ.km) |
Cu | Cu | |||||||||||||||||||||||||||||||||||||||||||||||
| 3×1.5 | 0.7 | 1.2 | 2×0.2 | 1.8 | 12 | 273 | ≤12.1 | 3.5 | ≥3.67 | 25 | 30 | |||||||||||||||||||||||||||||||||||||||||
| 3×2.5 | 0.7 | 1.2 | 2×0.2 | 1.8 | 13 | 321 | ≤7.41 | 3.5 | ≥3.67 | 30 | 35 | |||||||||||||||||||||||||||||||||||||||||
| 3×4 | 0.7 | 1.2 | 2×0.2 | 1.8 | 14 | 390 | ≤4.61 | 3.5 | ≥3.67 | 40 | 50 | |||||||||||||||||||||||||||||||||||||||||
| 3×6 | 0.7 | 1.2 | 2×0.2 | 1.8 | 15 | 471 | ≤3.08 | 3.5 | ≥3.67 | 50 | 60 | |||||||||||||||||||||||||||||||||||||||||
| 3×10 | 0.7 | 1.2 | 2×0.2 | 1.8 | 18 | 622 | ≤1.83 | 3.5 | ≥3.67 | 64 | 85 | |||||||||||||||||||||||||||||||||||||||||
| 3×16 | 0.7 | 1.2 | 2×0.2 | 1.8 | 20 | 1005 | ≤1.15 | 3.5 | ≥3.67 | 83 | 110 | |||||||||||||||||||||||||||||||||||||||||
| 3×25 | 0.9 | 1.2 | 2×0.2 | 1.8 | 23 | 1371 | ≤0.727 | 3.5 | ≥3.67 | 110 | 140 | |||||||||||||||||||||||||||||||||||||||||
| 3×35 | 0.9 | 1.2 | 2×0.2 | 1.8 | 26 | 1724 | ≤0.524 | 3.5 | ≥3.67 | 135 | 170 | |||||||||||||||||||||||||||||||||||||||||
| 3×50 | 1.0 | 1.2 | 2×0.2 | 1.9 | 24 | 2247 | ≤0.387 | 3.5 | ≥3.67 | 165 | 200 | |||||||||||||||||||||||||||||||||||||||||
| 3×70 | 1.1 | 1.2 | 2×0.2 | 2.0 | 28 | 3023 | ≤0.268 | 3.5 | ≥3.67 | 210 | 245 | |||||||||||||||||||||||||||||||||||||||||
| 3×95 | 1.1 | 1.2 | 2×0.5 | 2.2 | 33 | 3825 | ≤0.193 | 3.5 | ≥3.67 | 260 | 300 | |||||||||||||||||||||||||||||||||||||||||
| 3×120 | 1.2 | 1.2 | 2×0.5 | 2.3 | 36 | 4642 | ≤0.153 | 3.5 | ≥3.67 | 305 | 335 | |||||||||||||||||||||||||||||||||||||||||
| 3×150 | 1.4 | 1.3 | 2×0.5 | 2.4 | 40 | 5767 | ≤0.124 | 3.5 | ≥3.67 | 345 | 380 | |||||||||||||||||||||||||||||||||||||||||
| 3×185 | 1.6 | 1.4 | 2×0.5 | 2.6 | 44 | 6895 | ≤0.0991 | 3.5 | ≥3.67 | 395 | 430 | |||||||||||||||||||||||||||||||||||||||||
| 3×240 | 1.7 | 1.5 | 2×0.5 | 2.8 | 48 | 8617 | ≤0.0754 | 3.5 | ≥3.67 | 465 | 500 | |||||||||||||||||||||||||||||||||||||||||
| 4×4 | 0.7 | 1.2 | 2×0.2 | 1.8 | 15 | 454 | ≤4.61 | 3.5 | ≥3.67 | 40 | 50 | |||||||||||||||||||||||||||||||||||||||||
| 4×6 | 0.7 | 1.2 | 2×0.2 | 1.8 | 16 | 557 | ≤3.08 | 3.5 | ≥3.67 | 50 | 60 | |||||||||||||||||||||||||||||||||||||||||
| 4×10 | 0.7 | 1.2 | 2×0.2 | 1.8 | 19 | 791 | ≤1.83 | 3.5 | ≥3.67 | 64 | 85 | |||||||||||||||||||||||||||||||||||||||||
| 4×16 | 0.7 | 1.2 | 2×0.2 | 1.8 | 21 | 1210 | ≤1.15 | 3.5 | ≥3.67 | 83 | 110 | |||||||||||||||||||||||||||||||||||||||||
| 4×25 | 0.9 | 1.2 | 2×0.2 | 1.8 | 25 | 1672 | ≤0.727 | 3.5 | ≥3.67 | 110 | 140 | |||||||||||||||||||||||||||||||||||||||||
| 4×35 | 0.9 | 1.2 | 2×0.2 | 1.8 | 25 | 2127 | ≤0.524 | 3.5 | ≥3.67 | 135 | 170 | |||||||||||||||||||||||||||||||||||||||||
| 4×50 | 1.0 | 1.2 | 2×0.2 | 2.0 | 28 | 2802 | ≤0.387 | 3.5 | ≥3.67 | 165 | 200 | |||||||||||||||||||||||||||||||||||||||||
| 4×70 | 1.1 | 1.2 | 2×0.5 | 2.1 | 32 | 3785 | ≤0.268 | 3.5 | ≥3.67 | 210 | 245 | |||||||||||||||||||||||||||||||||||||||||
| 4×95 | 1.1 | 1.2 | 2×0.5 | 2.3 | 37 | 4829 | ≤0.193 | 3.5 | ≥3.67 | 260 | 300 | |||||||||||||||||||||||||||||||||||||||||
| 4×120 | 1.2 | 1.3 | 2×0.5 | 2.4 | 41 | 6033 | ≤0.153 | 3.5 | ≥3.67 | 305 | 335 | |||||||||||||||||||||||||||||||||||||||||
| 4×150 | 1.4 | 1.4 | 2×0.5 | 2.6 | 45 | 7356 | ≤0.124 | 3.5 | ≥3.67 | 345 | 380 | |||||||||||||||||||||||||||||||||||||||||
| 4×185 | 1.6 | 1.5 | 2×0.5 | 2.7 | 50 | 8808 | ≤0.0991 | 3.5 | ≥3.67 | 395 | 430 | |||||||||||||||||||||||||||||||||||||||||
| 4×240 | 1.7 | 1.6 | 2×0.5 | 3.0 | 55 | 11182 | ≤0.0754 | 3.5 | ≥3.67 | 465 | 500 | |||||||||||||||||||||||||||||||||||||||||
| 3×4+1×2.5 | 0.7 | 1.7 | 2×0.2 | 1.8 | 15 | 443 | ≤4.61 | 3.5 | ≥3.67 | 40 | 50 | |||||||||||||||||||||||||||||||||||||||||
| 3×6+1×4 | 0.7 | 1.2 | 2×0.2 | 1.8 | 16 | 531 | ≤3.08 | 3.5 | ≥3.67 | 50 | 60 | |||||||||||||||||||||||||||||||||||||||||
| 3×10+1×6 | 0.7 | 1.2 | 2×0.2 | 1.8 | 18 | 741 | ≤1.83 | 3.5 | ≥3.67 | 64 | 85 | |||||||||||||||||||||||||||||||||||||||||
| 3×16+1×10 | 0.7 | 1.2 | 2×0.2 | 1.8 | 21 | 1135 | ≤1.15 | 3.5 | ≥3.67 | 83 | 110 | |||||||||||||||||||||||||||||||||||||||||
| 3×25+1×16 | 0.9 | 1.2 | 2×0.2 | 1.8 | 24 | 1556 | ≤0.727 | 3.5 | ≥3.67 | 110 | 140 | |||||||||||||||||||||||||||||||||||||||||
| 3×35+1×16 | 0.9 | 1.2 | 2×0.2 | 1.8 | 26 | 1896 | ≤0.524 | 3.5 | ≥3.67 | 135 | 170 | |||||||||||||||||||||||||||||||||||||||||
| 3×50+1×25 | 1.0 | 1.2 | 2×0.2 | 1.9 | 27 | 2518 | ≤0.387 | 3.5 | ≥3.67 | 165 | 200 | |||||||||||||||||||||||||||||||||||||||||
| 3×70+1×35 | 1.1 | 1.2 | 2×0.5 | 2.0 | 30 | 3293 | ≤0.268 | 3.5 | ≥3.67 | 210 | 245 | |||||||||||||||||||||||||||||||||||||||||
| 3×95+1×50 | 1.1 | 1.2 | 2×0.5 | 2.2 | 36 | 4349 | ≤0.193 | 3.5 | ≥3.67 | 260 | 300 | |||||||||||||||||||||||||||||||||||||||||
| 3×120+1×70 | 1.2 | 1.3 | 2×0.5 | 2.3 | 39 | 5365 | ≤0.153 | 3.5 | ≥3.67 | 305 | 335 | |||||||||||||||||||||||||||||||||||||||||
| 3×150+1×70 | 1.4 | 1.3 | 2×0.5 | 2.5 | 43 | 6468 | ≤0.124 | 3.5 | ≥3.67 | 345 | 380 | |||||||||||||||||||||||||||||||||||||||||
| 3×185+1×95 | 1.6 | 1.4 | 2×0.5 | 2.6 | 47 | 7854 | ≤0.0991 | 3.5 | ≥3.67 | 395 | 430 | |||||||||||||||||||||||||||||||||||||||||
| 3×240+1×120 | 1.7 | 1.5 | 2×0.5 | 2.8 | 52 | 9814 | ≤0.0754 | 3.5 | ≥3.67 | 465 | 500 | |||||||||||||||||||||||||||||||||||||||||
1. What is Steel Tape Armored Cable used for?
Steel Tape Armored Cable is mainly used for power distribution projects requiring additional mechanical protection, especially underground applications.
2. What makes YJV22 Power Cable different from standard power cables?
YJV22 Power Cable includes steel tape armoring to improve mechanical protection and installation reliability in complex environments.
3. How should I choose the right armored cable specification?
Selection depends on voltage level, current capacity, installation method, operating environment, and protection requirements.
4. Can the cable be customized for different projects?
Yes. Custom options include conductor size, insulation thickness, sheath color, printing, length, and packaging.
5. What is the delivery time for customized cable orders?
The standard production period is 20–40 days, depending on order quantity and customization requirements.
-
