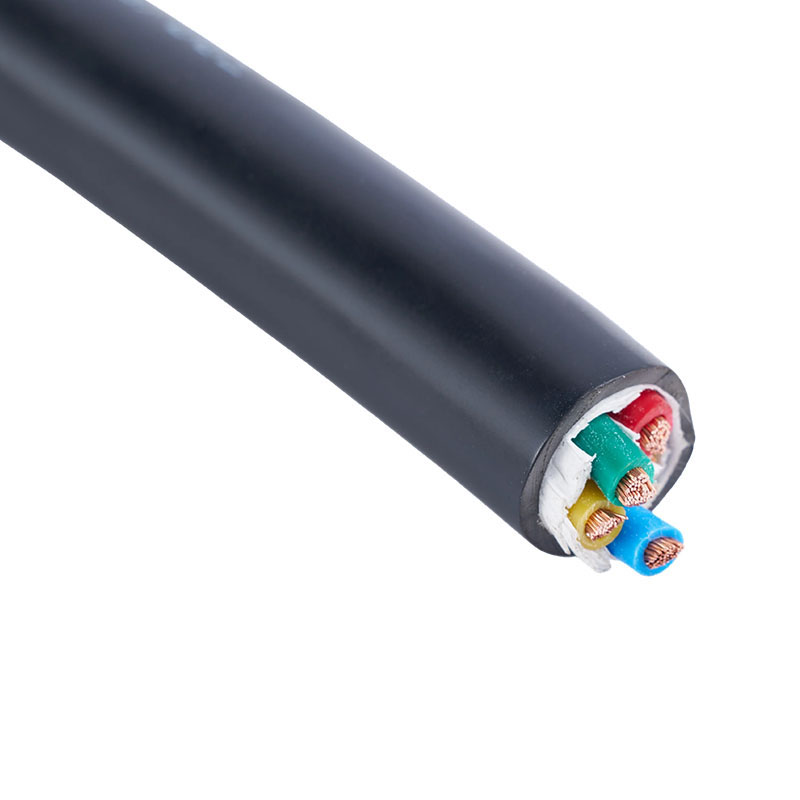

Shielded Cable RVV

Mold: RVV

Shielded Cable RVV is a flexible cable solution commonly used for control signal transmission and power connection in low-voltage electrical applications. With a multi-strand copper conductor, PVC insulation, and protective sheath structure, it offers excellent flexibility and stable operational performance.
As a practical Shielded Control Cable, it is suitable for equipment wiring, monitoring systems, household appliances, and automation applications. This Shielded Electrical Cable also features flexible installation characteristics, while the Braided Shield Cable structure helps improve signal stability in environments requiring better interference protection.

Product Core Features
Flexible Bending Performance: Multi-strand fine copper wire conductor structure supports frequent bending, dragging, and movement while reducing the risk of conductor breakage.
Stable Electrical Performance: Supports 300/500V voltage rating with a maximum conductor working temperature of 70℃, ensuring reliable signal and power transmission.
Double Protection Structure: Combines PVC insulation and outer sheath layers to improve resistance against abrasion, compression, and moisture during operation.
Wide Specification Selection: Supports 2-core or more core configurations, meeting different control, signal, and power connection requirements.
Efficient Installation Capability: Smooth and flexible cable surface allows easier stripping, routing, and installation through conduits or narrow spaces.
Certified Quality Standard: Available with CCC and CE certifications, complying with HD harmonized standards for applications in different markets.

OEM & Customization Services
We provide customized Shielded Cable solutions for different project and brand requirements.
Cable Structure Customization: Supports conductor specifications, core numbers, insulation thickness, and cable structure adjustments.
Appearance Customization: Provides sheath color selection, cable printing, logo marking, and identification customization.
Length Customization: Supports cable customization from 100 meters per cable, with same-color wire customization from 5000 meters.
Packaging Customization: Offers customized packaging solutions according to transportation and storage requirements.
Bulk Production Support: Provides stable production capacity with delivery time of 20-40 days depending on order quantity.
Project Support: Offers specification matching and technical documents for contractors, distributors, and engineering procurement.

Shielded Cable is widely applied in flexible wiring systems for control, monitoring, and power transmission. It provides reliable solutions for electrical contractors, equipment manufacturers, and project suppliers.
Security & Monitoring Systems: Used for surveillance cameras, access control systems, and signal transmission equipment.
Building Electrical Applications: Suitable for building intercom systems, lighting control, and low-voltage installation projects.
Home Appliances & Equipment: Applied in household appliances, instruments, and movable electrical devices requiring flexible connection.
Automation & Control Systems: Provides stable wiring support for industrial equipment and control devices with Shielded Control Cable requirements.

Product Structure

Conductor:	Multi-strand copper
Dielectric:	PVC
Jacket Material:	PVC
Identification:	≤5 by Color/ by numbering
Cores:	2-5/7-36
Sectional area:	0.75-2.5 mm² 0.5,2.5-35 mm²
Package Size:	100m,500m,5000m

Technical Parameters

Rated voltage:	300v/500v
Test voltage:	2000v，5min
Bending radius:	15xCable OD
Standard:	GB 5023、IEC60227
Temperature Range:	-30~+70℃
Characteristics:	Flame resistance, oil resistance, bending resistance

Product Feature

RVV is the most commonly used weak-current cable. The number of cores is two or more, with no special requirements. There are flame-retardant, fire-resistant, low smoke halogen-free types.

Application

RVV cable is mainly used for medium and light mobile appliances, instrumentation, home appliances, power lighting, building intercom, monitoring and control installation, and other flexible places; it can transmit control signals. It also transmits power signals and is suitable for laying on bridges and hoses. At the same time, the product has been CCC and CE certifica-
tion, in line with the HD (European Union harmonized standards) requirements, not only applicable to the Chinese market, but also applicable to the European market. The cable model is HO5VV-F according to HD standard.

Product model	Number of cores × cross-sectional area NXmm²	Approximate weight kg/m	Approximate outer diameter mm±10%	Product model	Number of cores × cross-sectional area N×mm²	Approximate weight kg/m	Approximate outer diameter mm±10%
RVV	2×0.75	0.05	6.3	RVV	2×1.5	0.08	7.8
RVV	3×0.75	0.06	6.7	RVV	3×1.5	0.10	8.3
RVV	4×0.75	0.08	7.5	RVV	4×1.5	0.12	9.3
RVV	5×0.75	0.09	8.2	RVV	5×1.5	0.15	10.3
RVV	6×0.75	0.10	8.3	RVV	6×1.5	0.18	11.2
RVV	7×0.75	0.10	8.3	RVV	7×1.5	0.19	11.2
RVV	8×0.75	0.12	9.4	RVV	8×1.5	0.23	12.8
RVV	9×0.75	0.14	10.4	RVV	9×1.5	0.27	14.0
RVV	10×0.75	0.16	10.8	RVV	10×1.5	0.30	14.8
RVV	11×0.75	0.17	11.1	RVV	11×1.5	0.33	15.3
RVV	12×0.75	0.18	11.1	RVV	12×1.5	0.34	15.3
RVV	13×0.75	0.20	11.9	RVV	13×1.5	0.38	16.2
RVV	14×0.75	0.21	11.9	RVV	14×1.5	0.39	16.2
RVV	15×0.75	0.22	12.5	RVV	15×1.5	0.42	17.1
RVV	16×0.75	0.23	12.5	RVV	16×1.5	0.44	17.1
RVV	2×1	0.06	6.67	RVV	2×2.5	0.11	9.4
RVV	3×1	0.07	7.07	RVV	3×2.5	0.14	10.0
RVV	4×1	0.09	7.93	RVV	4×2.5	0.19	11.1
RVV	5×1	0.11	8.83	RVV	5×2.5	0.23	12.3
RVV	6×1	0.13	9.58	RVV	6×2.5	0.28	13.6
RVV	7×1	0.14	9.58	RVV	7×2.5	0.30	13.6
RVV	8×1	0.17	10.91	RVV	8×2.5	0.35	15.5
RVV	9×1	0.19	11.99	RVV	9×2.5	0.41	17.0
RVV	10×1	0.21	12.5	RVV	10×2.5	0.45	17.7
RVV	11×1	0.23	12.9	RVV	11×2.5	0.49	18.3
RVV	12×1	0.24	12.9	RVV	12×2.5	0.51	18.3
RVV	13×1	0.26	13.7	RVV	13×2.5	0.56	19.4
RVV	14×1	0.27	13.7	RVV	14×2.5	0.59	19.4
RVV	15×1	0.30	14.6	RVV	15×2.5	0.64	20.5
RVV	16×1	0.31	14.6	RVV	16×2.5	0.66	20.5

1. What is Shielded Cable RVV mainly used for?
It is commonly used for monitoring systems, electrical equipment, appliances, automation devices, and low-voltage wiring applications.

2. How does an RVV cable improve wiring flexibility?
Its multi-strand copper conductor structure allows easier bending and movement compared with rigid cable structures.

3. Can Shielded Electrical Cable RVV be used for outdoor installation?
It is mainly recommended for indoor applications or protected environments such as conduits, cable trays, and equipment wiring.

4. What customization options are available for bulk orders?
Customization includes cable structure, sheath color, printing marks, packaging, and cable length according to project needs.

5. How long is the production lead time for customized orders?
The standard delivery period is 20-40 days, depending on order quantity and customization requirements.
