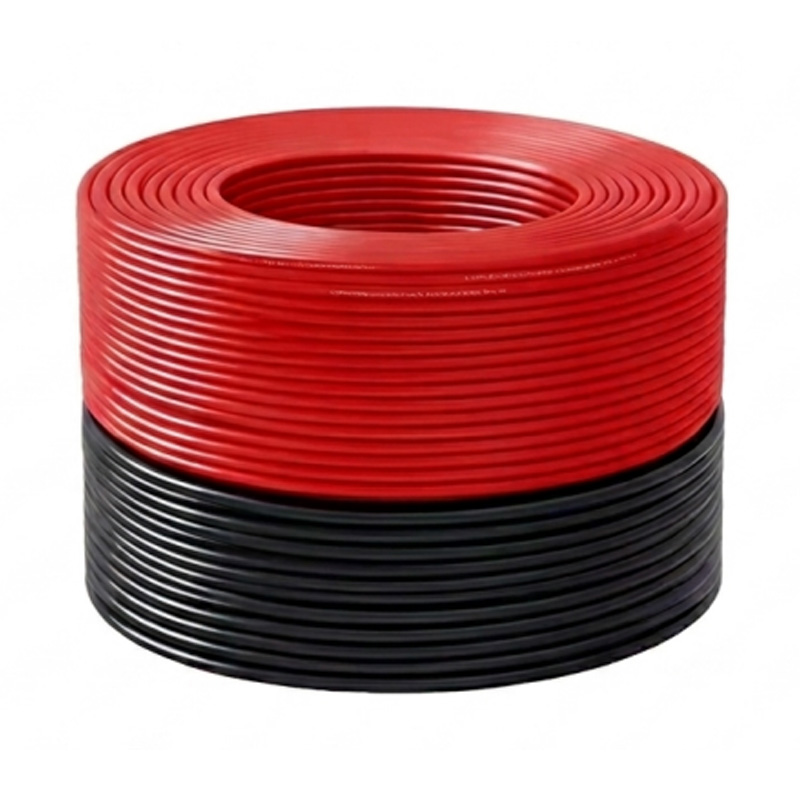

Solar Photovoltaic Cables PV1-F
Mold: PV1-F
Solar Photovoltaic Cables PV1-F is a specialized cable solution developed for solar power systems, providing reliable connection between photovoltaic modules, inverters, and electrical equipment. With durable insulation and sheath materials, it supports stable energy transmission in outdoor environments.
Designed for renewable energy applications, this Solar PV Cable delivers consistent performance in rooftop systems, solar farms, and commercial photovoltaic projects. The Photovoltaic Wire structure helps improve connection reliability between solar components, while PV1-F Solar Cable and Solar Energy Cable solutions provide durable power transmission for long-term solar installations.
Product Core Features
UV & Weather Resistance: Electron beam cross-linked insulation and sheath materials provide stable performance under long-term sunlight, ozone, and harsh weather exposure.
Wide Temperature Adaptability: Supports reliable operation from -40℃ to +90℃, suitable for various outdoor photovoltaic environments.
Long Service Life: Anti-aging materials support more than 25 years of service life in solar energy applications
Enhanced Fire Safety: Meets EN 60332-1-2 flame retardant requirements, improving safety performance in photovoltaic installations.
Low Smoke & Halogen-Free Structure: LSZH/LSOH materials reduce harmful emissions and support safer electrical environments.
Flexible Installation Performance: Designed for photovoltaic wiring systems, supporting easier installation between solar panels and inverters.
OEM & Customization Services
We provide customized Solar Photovoltaic Cables solutions for different project and brand requirements.
Cable Structure Customization: Supports conductor specifications, insulation thickness, sheath materials, and cable structure adjustments.
Appearance Customization: Provides sheath colors, printing marks, logo identification, and customized labels.
Length Customization: Supports cable lengths from 100 meters per cable; same-color wire customization starts from 5000 meters.
Packaging Customization: Offers packaging solutions according to transportation and storage requirements.
Bulk Production Support: Provides stable production with a delivery time of 20-40 days depending on order quantity.
Technical Support: Offers specification matching and technical documents for contractors, distributors, and photovoltaic projects.
Application Scenarios
Parameter Details
FAQ
Solar Photovoltaic Cables provide reliable connection solutions for solar installers, engineering contractors, and photovoltaic system suppliers.
Solar Power Plants: Used for connection between solar modules, combiner boxes, and inverters in large photovoltaic projects.
Commercial & Industrial Rooftops: Suitable for solar systems installed on factories, buildings, and energy facilities.
Residential Solar Systems: Applied in household photovoltaic installations requiring durable outdoor wiring.
Renewable Energy Projects: Supports Solar PV Cable applications in different solar energy environments.
Technical Characteristics
| Property | Description |
| Conductor | Stranded Tinned Soft Copper |
| Insulation & Jacket | Electron-beam cross-linked LSZH/LSOH |
| Rated Voltage | AC Uo/U 0.6/1.0KV, DC 1.8kV |
| Test Voltage | AC 6.5KV/5min, DC 15KV/5min |
| Temperature Rating | -40°C to +90°C (Max Conductor Temp:120°C) |
| Short Circuit Temp | 200°C (for 5 seconds) |
| Flame Test | EN 60332-1-2 (Vertical Flame) |
| Cold Bend Test | EN 60811-1-4 |
Cable Structure Table
| Cross Section (mm²) | Conductor Structure (Φn/mm) | Outer Diameter (mm) | Max Resistance (Ω/km) | Current Capacity 60℃ (A) | |
| 1.5 | 22 x 0.285 | 4.3 | 13.7 | 24 | |
| 2.5 | 36 x 0.285 | 4.8 | 8.21 | 33 | |
| 4 | 56 x 0.285 | 5.1 | 5.09 | 44 | |
| 6 | 84 x 0.285 | 5.9 | 3.39 | 57 | |
| 10 | 80 x 0.39 | 6.9 | 1.95 | 79 | |
| 16 | 120 x 0.39 | 8.4 | 1.24 | 107 | |
| 25 | 196 x 0.39 | 10.2 | 0.795 | 142 | |
| 35 | 276 x 0.39 | 11.2 | 0.565 | 176 | |
1. What is Solar Photovoltaic Cables PV1-F mainly used for?
It is used for solar panel connections, inverter connections, and photovoltaic power transmission systems.
2. What makes PV1-F Solar Cable suitable for outdoor solar installations?
Its UV-resistant, weather-resistant, and aging-resistant materials support long-term outdoor operation.
3. How to choose the suitable Photovoltaic Wire specification?
Selection should consider current capacity, installation conditions, cable length, and environmental requirements.
4. Can Solar Energy Cable be customized for different projects?
Yes, customization includes conductor specifications, colors, printing, length, and packaging.
5. What information is required for bulk solar cable orders?
Provide cable specifications, application environment, quantity, customization requirements, and delivery schedule.
-
