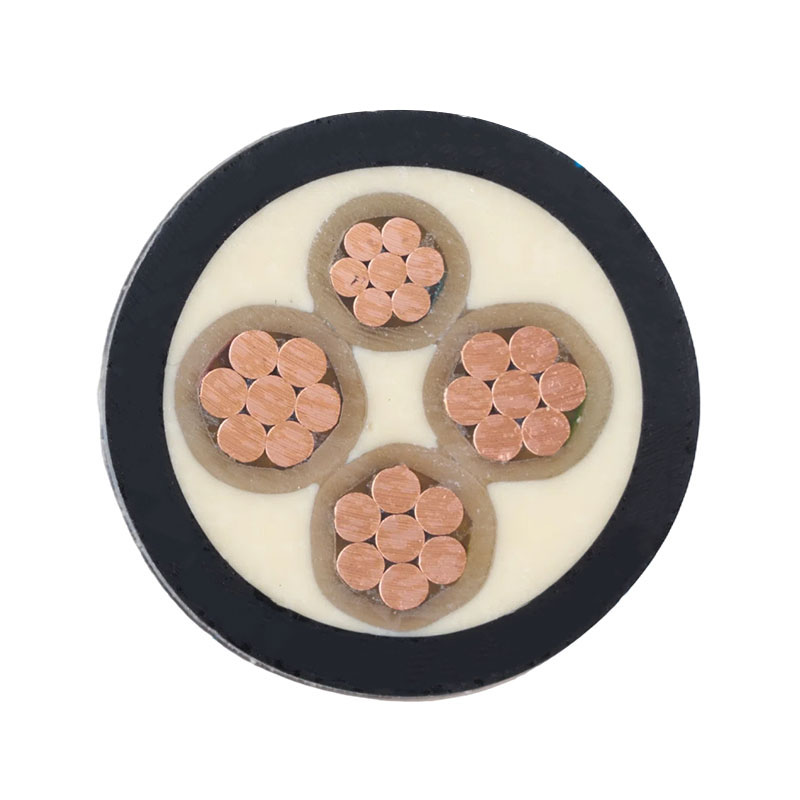

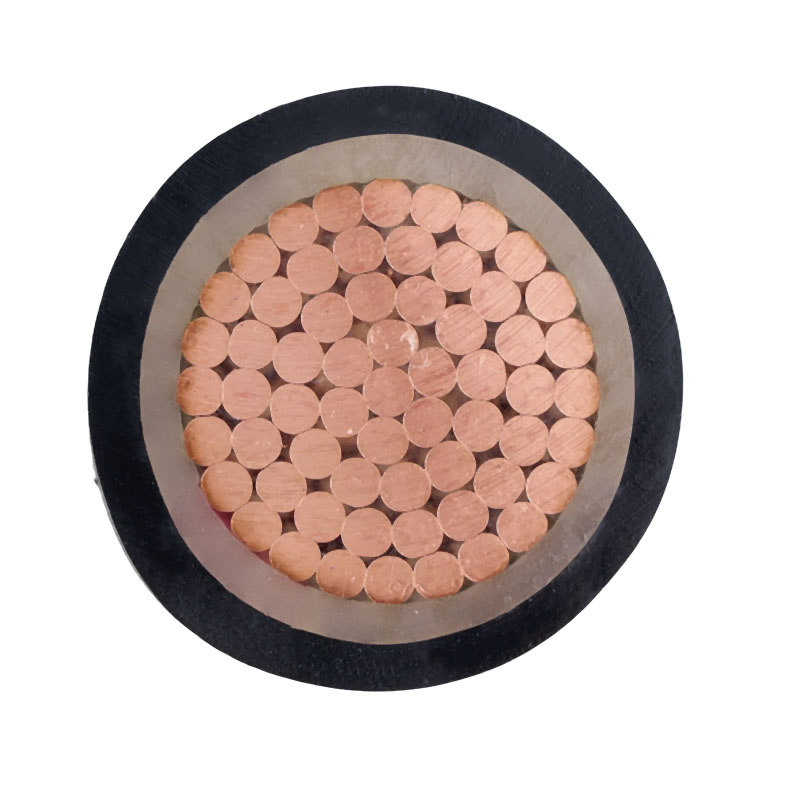

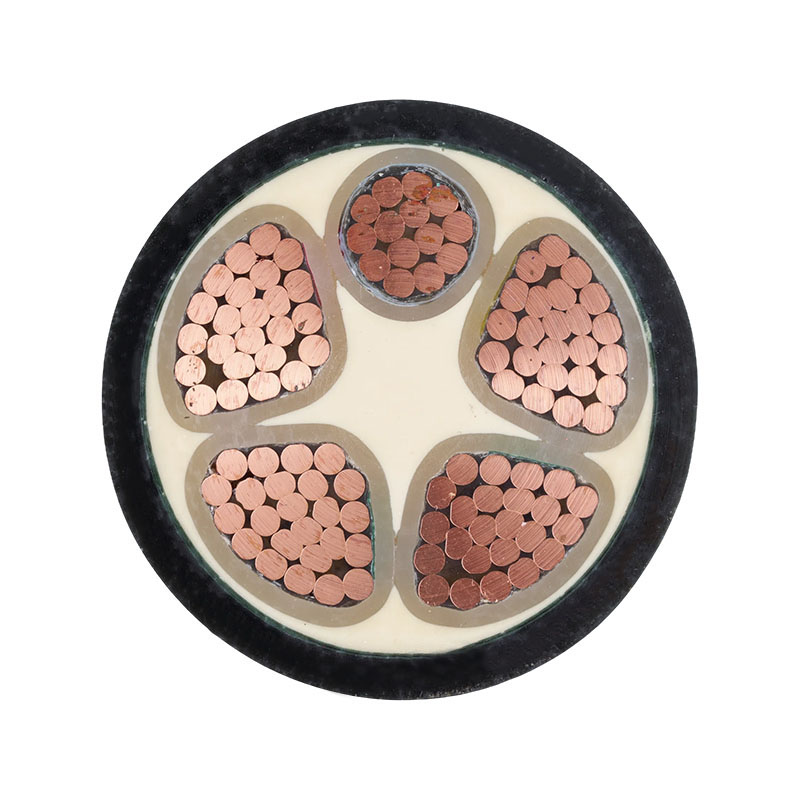

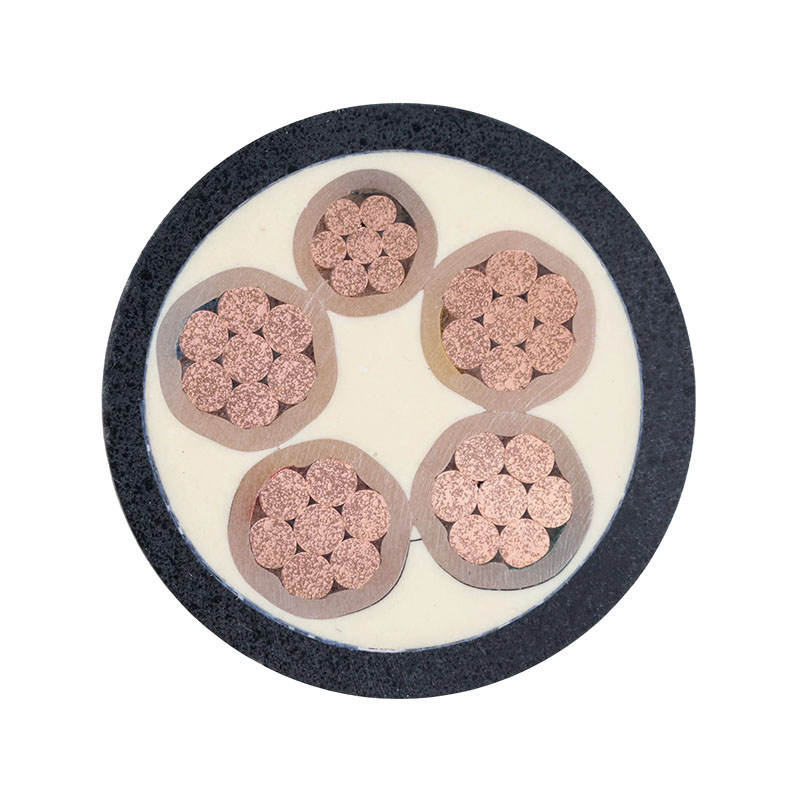

XLPE Insulated PVC Sheathed Power Cable YJV
XLPE Insulated PVC Sheathed Power Cable YJV
XLPE Insulated PVC Sheathed Power Cable YJV
XLPE Insulated PVC Sheathed Power Cable YJV
XLPE Insulated PVC Sheathed Power Cable YJV
XLPE Insulated PVC Sheathed Power Cable YJV
XLPE Insulated PVC Sheathed Power Cable YJV
XLPE Insulated PVC Sheathed Power Cable YJV
XLPE Insulated PVC Sheathed Power Cable YJV
XLPE Insulated PVC Sheathed Power Cable YJV

XLPE Insulated PVC Sheathed Power Cable YJV


Mold: YJV

XLPE-insulated PVC-sheathed power cable YJV is a reliable solution for low-voltage power transmission and distribution systems. It uses cross-linked polyethylene (XLPE) insulation and PVC sheath materials to provide stable electrical performance, heat resistance, and long-term operation reliability.

Core Product Features
Stable Electrical Insulation: Uses XLPE insulation with high insulation resistance and low dielectric loss, suitable for rated-voltage systems of 0.6/1kV.
High Temperature Performance: Supports a conductor operating temperature of 90°C, offering stronger current carrying capacity and overload resistance compared with standard PVC insulated cables.
Short-Circuit Protection Capability: Withstands conductor temperatures up to 250°C during short circuits lasting up to 5 seconds.
Strong Mechanical Durability: The reinforced cable structure provides good tensile strength and pressure resistance.
Chemical Resistance: The PVC sheath provides resistance against acids, alkalis, and chemical oils.

OEM Customization Options
Low Voltage Power Cable supports flexible customization services to meet different project specifications and brand requirements:
Cable Structure Customization: Supports conductor material, conductor size, insulation thickness, and sheath structure adjustments based on application requirements.
Appearance Customization: Provides sheath color selection, cable printing, marking information, and packaging customization for brand recognition.
Length Customization: Supports customized cable lengths from 100 meters and above; wire products support same-color customization starting from 5,000 meters.
Packaging Customization: Offers customized packaging solutions according to transportation, storage, and distribution requirements.

Contact Us
PREV：No previous product
NEXT：No next product
Application Scenarios
Parameter Details
FAQ

XLPE Insulated Cables are widely used in power distribution projects that require stable performance and long-term durability. Typical application areas include:
Residential Buildings: Used in power distribution systems for apartments, houses, and residential communities, supporting reliable electricity supply for daily applications.
Commercial Facilities: Applied in office buildings, shopping centers, hotels, and public facilities where continuous power transmission is required.
Industrial Projects: Suitable for factories, production workshops, and industrial equipment power systems, providing stable electrical connections under demanding operating conditions.
Infrastructure Construction: Used in underground power networks, cable trenches, and large-scale engineering projects requiring long service life and installation flexibility.

Nominal cross-sectional area of conductor (mm²) Insulation thickness (mm) Sheath thickness (mm) Approx. overall diameter  of cable(mm) Approx. weight of cable(kg/km) D.C. resistance of conductor (2/km) Testing voltage A.C. Insulation resistance 90℃ Current rating
In air(A) Direct in soil(A)
Cu Cu (kV/5min) (MΩ.km) Cu Cu
1×1.5 0.7  1.4  6  45  ≤12.1 3.5  ≥3.67 25  35
1×2.5 0.7  1.4  6  57  ≤7.41 3.5  ≥3.67 31  42
1×4 0.7  1.4  7  73  ≤4.61 3.5  ≥3.67 41  55
1×6 0.7  1.4  7  94  ≤3.08 3.5  ≥3.67 52  69
1×10 0.7  1.4  8  140  ≤1.83 3.5  ≥3.67 71  92
1×16 0.7  1.4  9  199  ≤1.15 3.5  ≥3.67 92  115
1×25 0.9  1.4  11  297  ≤0.727 3.5  ≥3.67 120  150
1×35 0.9  1.4  12  391  ≤0.524 3.5  ≥3.67 150  180
1×50 1.0  1.4  13  512  ≤0.387 3.5  ≥3.67 180  215
1×70 1.1  1.4  15  713  ≤0.268 3.5  ≥3.67 230  265
1×95 1.1  1.5  17  967  ≤0.193 3.5  ≥3.67 285  320
1×120 1.2  1.5  19  1201  ≤0.153 3.5  ≥3.67 335  360
1×150 1.4  1.6  21  1480  ≤0.124 3.5  ≥3.67 385  410
1×185 1.6  1.7  23  1845  ≤0.0991 3.5  ≥3.67 450  460
1×240 1.7  1.8  26  2394  ≤0.0754 3.5  ≥3.67 535  535
3×1.5 0.7  1.8  10  118  ≤12.1 3.5  ≥3.67 25  30
3×2.5 0.7  1.8  11  153  ≤7.41 3.5  ≥3.67 28  39
3×4 0.7  1.8  12  204  ≤4.61 3.5  ≥3.67 37  51
3×6 0.7  1.8  13  269  ≤3.08 3.5  ≥3.67 47  64
3×10 0.7  1.8  15  410  ≤1.83 3.5  ≥3.67 65  86
3×16 0.7  1.8  17  594  ≤1.15 3.5  ≥3.67 84  110
3×25 0.9  1.8  21  902  ≤0.727 3.5  ≥3.67 110  140
3×35 0.9  1.8  23  1195  ≤0.524 3.5  ≥3.67 135  170
3×50 1.0  1.8  22  1472  ≤0.387 3.5  ≥3.67 170  205
3×70 1.1  1.9  25  2077  ≤0.268 3.5  ≥3.67 215  250

Nominal
Cross
sectional area
of conductor
(mm²)		 Insulation
thickness
(mm)		 Sheath
thickness
(mm)		 Approx.
overall
diameter of
cable(mm)		 Approx. weight of
cable(kg/km)		 D.C.resistance of
conductor
(Ω/km)		 Testing
voltage
A.C.		 Insulation
resistance
90℃		 Current rating
In air(A) Direct in soil(A)
Cu Cu (kV/5min) (MΩ.km) Cu Cu
3×95 1.1  2.0  28  3020  ≤0.193 3.5  ≥3.67 265  300
3×120 1.2  2.1  31  3790  ≤0.153 3.5  ≥3.67 310  345
3×150 1.4  2.3  36  4750  ≤0.124 3.5  ≥3.67 350  385
3×185 1.6  2.4  40  5654  ≤0.0991 3.5  ≥3.67 405  435
3×240 1.7  2.6  44  7243  ≤0.0754 3.5  ≥3.67 480  500
4×4 0.7  1.8  13  253  ≤4.61 3.5  ≥3.67 37  51
4×6 0.7  1.8  14  337  ≤3.08 3.5  ≥3.67 47  64
4×10 0.7  1.8  17  501  ≤1.83 3.5  ≥3.67 65  86
4×16 0.7  1.8  19  778  ≤1.15 3.5  ≥3.67 84  110
4×25 0.7  1.8  23  1160  ≤0.727 3.5  ≥3.67 110  140
4×35 0.9  1.8  25  1554  ≤0.524 3.5  ≥3.67 135  170
4×50 1.0  1.9  25  2148  ≤0.387 3.5  ≥3.67 170  205
4×70 1.1  2.0  29  2928  ≤0.268 3.5  ≥3.67 215  250
4×95 1.1  2.1  33  3954  ≤0.193 3.5  ≥3.67 265  300
4×120 1.2  2.3  37  4925  ≤0.153 3.5  ≥3.67 310  345
4×150 1.4  2.4  41  6238  ≤0.124 3.5  ≥3.67 350  385
4×185 1.6  2.6  45  7562  ≤0.0991 3.5  ≥3.67 405  435
4×240 1.7  2.8  51  9836  ≤0.0754 3.5  ≥3.67 480  500
3×4+1×2.5 0.7  1.8  13  236  ≤4.61 3.5  ≥3.67 37  51
3×6+1×4 0.7  1.8  14  316  ≤3.08 3.5  ≥3.67 47  64
3×10+1×6 0.7  1.8  16  461  ≤1.83 3.5  ≥3.67 65  86
3×16+1×10 0.7  1.8  18  679  ≤1.15 3.5  ≥3.67 84  110
3×25+1×16 0.9  1.8  22  1065  ≤0.727 3.5  ≥3.67 110  140
3×35+1×16 0.9  1.8  24  1360  ≤0.524 3.5  ≥3.67 135  170
3×50+1×25 1.0  1.8  24  1901  ≤0.387 3.5  ≥3.67 170  205
3×70+1×35 1.1  1.9  28  2585  ≤0.268 3.5  ≥3.67 215  250
3×95+1×50 1.1  2.1  31  3518  ≤0.193 3.5  ≥3.67 265  300
3×120+1×70 1.2  2.2  35  4443  ≤0.153 3.5  ≥3.67 310  345
3×150+1×70 1.4  2.3  39  5326  ≤0.124 3.5  ≥3.67 350  385
3×185+1×95 1.6  2.5  43  6682  ≤0.0991 3.5  ≥3.67 405  435
3×240+1×120 1.7  2.7  48  8501  ≤0.0754 3.5  ≥3.67 480  500

1. What applications are suitable for YJV Power Cable?
YJV Power Cable is commonly used in low-voltage power distribution systems, including buildings, industrial facilities, infrastructure projects, and underground networks.

2. How can I choose the correct cable specification for my project?
Selection should consider current-carrying requirements, installation methods, operating environment, and safety requirements. Cable size and protection structure should be matched according to actual conditions.

3. What are the advantages of copper conductor cables compared with aluminum conductor cables?
Copper conductor cables feature lower electrical resistance, higher mechanical strength, better flexibility, and stronger connection reliability, while aluminum conductor cables provide advantages in weight and cost for certain applications.

4. Can the cable specifications be customized for different projects?
Yes. Customization options include conductor specifications, insulation structure, sheath color, printing information, cable length, and packaging methods.

5. How long does customized cable production usually take?
The production period is generally 20–40 days, depending on order quantity, customization requirements, and production schedule.
