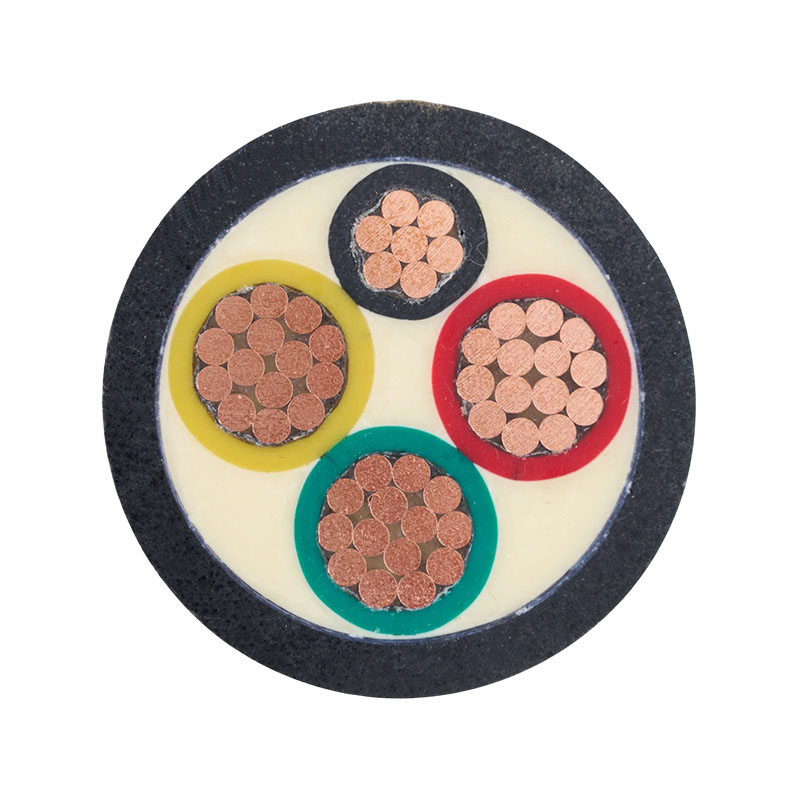

Prefabricated Branch Power Cable (FZ)
Mold: NH一YJV
Prefabricated Branch Power Cable (FZ) is a pre-assembled cable solution developed for efficient power distribution in buildings and industrial projects. With factory-made branch connections, it simplifies installation processes while improving wiring reliability and construction efficiency.
As a practical Prefabricated Branch Cable solution, it is widely used in vertical power distribution, commercial buildings, factories, and infrastructure projects. The Branch Power Cable structure reduces on-site cable processing, while FZ Branch Cable provides flexible configurations for different power supply requirements.
Product Core Features
Wide Specification Range: Supports main cable conductor sizes from 10mm² to 1000mm² and branch cable sizes from 10mm² to 240mm² for different power distribution needs.
Prefabricated Connection Structure: Factory-made branch joints reduce on-site processing and improve installation efficiency for large projects.
Flexible Configuration: Supports main cable, branch cable, and PE grounding cable combinations for customized power distribution layouts.
Reliable Connection Quality: Standardized prefabrication helps reduce installation errors and ensures consistent connection performance.
Project Adaptability: Suitable for residential buildings, commercial facilities, factories, and infrastructure power systems.
OEM & Customization Services
We provide customized Prefabricated Branch Power Cable solutions for different project and brand requirements.
Cable Structure Customization: Supports conductor specifications, insulation thickness, cable structure, and branch configuration adjustments.
Appearance Customization: Provides sheath colors, cable printing, logo marking, and identification customization.
Length Customization: Supports cable length from 100 meters per cable; same-color wire customization starts from 5000 meters.
Packaging Customization: Offers customized packaging methods according to transportation and storage requirements.
Bulk Production Support: Provides stable production capacity with delivery time of 20-40 days depending on order quantity.
Technical Support: Provides specification matching and technical documents for contractors, distributors, and engineering projects.
Application Scenarios
Parameter Details
FAQ
Prefabricated Branch Power Cable provides efficient power distribution solutions for electrical contractors, construction companies, equipment suppliers, and project procurement teams.
High-Rise Buildings: Used for vertical power supply systems in residential buildings, offices, hotels, and commercial facilities.
Industrial Facilities: Applied in factories, workshops, and large equipment power distribution systems.
Infrastructure Projects: Suitable for hospitals, transportation facilities, and public buildings requiring reliable cable installation.
Engineering Projects: Provides customized Prefabricated Branch Cable solutions for large-scale electrical construction.
 |

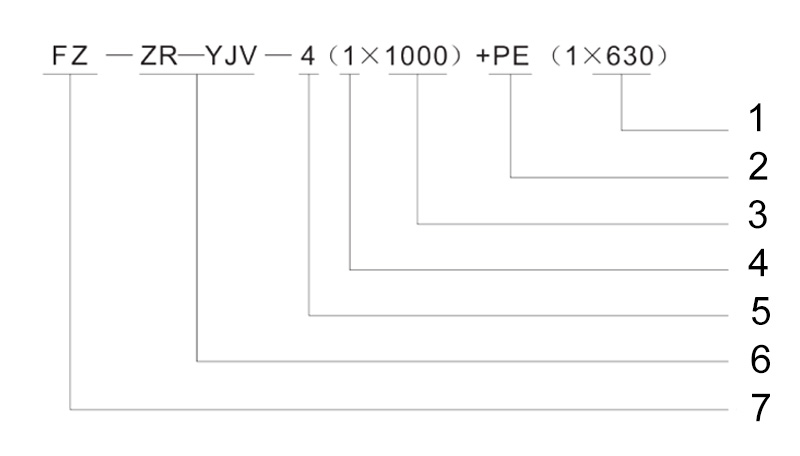

1. PE cable secxin 2. Protection ground cable 3. Cable secxin 4. No.of cables 5. No.of cables 6. Model 7. Prefabricated Branch Cable |
Examples:1
The main cable is shown as: FZ-ZR-YJV-4(1X1000)
The branch cable is shown as: FZ-ZR-YJV-4 (1X630)
or shown as:FZ-ZR-YJV-4(1X1000)/4 (1X630)
Examples:2
The main cableis shown as:FZ-NH-YJV-4 (1X1000)+PE(1X630)
The branch cableis shown as:FZ-NH-YJV-4 (1X630)+PE(1X300)
OrshoWn as:FZ-NH-YJV-4 (1X1000)+ PE(1X630)/ (1X300)+PE (1X50)

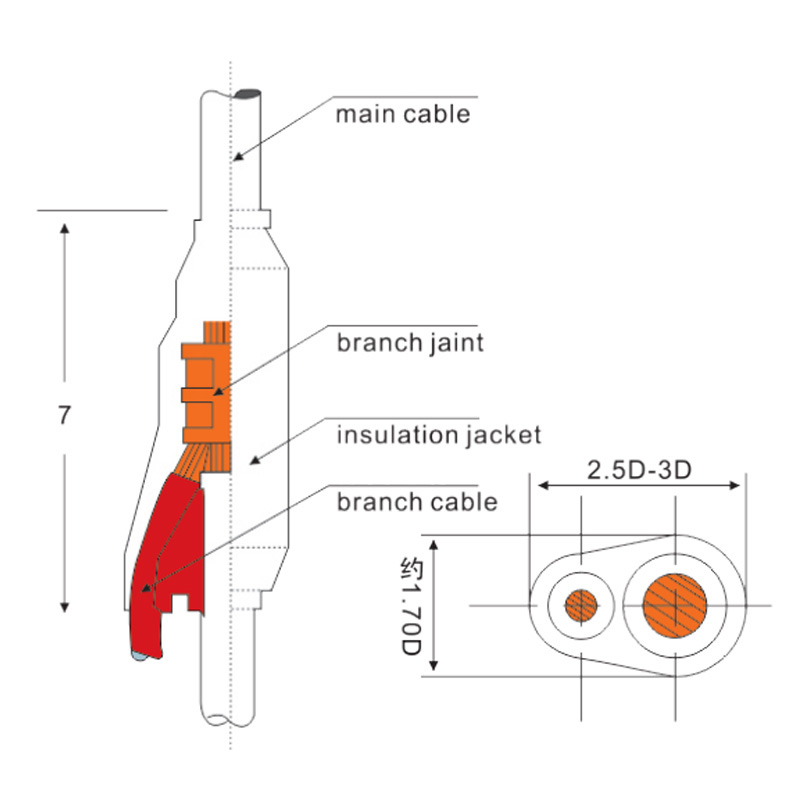

Structural drawings of branch joint
| Single core cable specs(mm²) | 10~25 | 35~70 | 95~185 | 240~400 | 500~63 | 800~1000 |
| Size of L(mm) | 120 | 125 | 125 | 150 | 175 | 185 |
| Single core cable specs(mm²) | 10~35 | 50~70 | 95~120 | 150~240 |
| Size of L(mm) | 280 | 320 | 400 | 500 |
Technology Parameters
Parameters of 0.6/1kv single core XLPE/PVC cable
| Wire | Nominal thickness of insulation (mm) |
Nominal thickness of sheath (mm) |
Overall diameter of conductor (mm) |
Approx. Weight (kg/km) |
Altemating voltage test (kV) |
Max DC, resistance of conductor at 20℃ (Ω/km) |
Rated OOO |
Rated O |
Voltage drop (VIA.m) ×10-3 |
|||||||||||||||||||||||||||||||||||||||||||
| Nominal cross- sectional area of conductor (mm2) |
Shape and structure |
Diameter (mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||
| 10 16 |
Circular stranded conductor |
3.7 4.7 |
0.7 0.7 |
1.4 1.4 |
9.0 9.5 |
150 |
3.5 3.5 |
1.83 1.15 |
85 113 |
75 100 |
2.0 1.3 |
|||||||||||||||||||||||||||||||||||||||||
| 25 35 |
5.9 7.0 |
0.9 0.9 |
1.4 1.4 |
11.5 12.0 |
310 |
3.5 3.5 |
0.727 0.524 |
150 181 |
132 164 |
0.84 0.63 |
||||||||||||||||||||||||||||||||||||||||||
| 50 70 |
8.5 10.01 |
1.0 1.1 |
1.4 1.4 |
14.0 16.0 |
570 |
3.5 3.5 |
0.387 0.268 |
265 290 |
196 255 |
0.49 0.36 |
||||||||||||||||||||||||||||||||||||||||||
| 95 120 |
11.7 13.2 |
1.1 1.2 |
1.5 1.5 |
18.0 20.0 |
1030 |
3.5 3.5 |
0.193 0.153 |
347 410 |
310 360 |
0.29 0.24 |
||||||||||||||||||||||||||||||||||||||||||
| 150 185 |
14.7 16.4 |
1.4 1.6 |
1.6 1.6 |
22.0 24.0 |
1590 |
3.5 3.5 |
0.124 0.0991 |
470 530 |
419 479 |
0.21 0.19 |
||||||||||||||||||||||||||||||||||||||||||
| 240 300 |
18.6 20.8 |
1.7 1.8 |
1.7 1.8 |
27.0 30.0 |
2490 |
3.5 3.5 |
0.0754 0.0601 |
640 725 |
565 643 |
0.16 0.15 |
||||||||||||||||||||||||||||||||||||||||||
| 400 500 |
21.1 26.9 |
2.0 2.2 |
1.9 2.0 |
34.0 37.0 |
4140 |
3.5 3.5 |
0.0470 0.0366 |
845 980 |
771 940 |
0.131 0.120 |
||||||||||||||||||||||||||||||||||||||||||
| 630 800 |
30.2 34.8 |
2.4 2.6 |
2.2 2.3 |
41.0 46.0 |
6640 |
3.5 3.5 |
0.0283 0.0221 |
1150 |
1130 1300 |
0.111 0.104 |
||||||||||||||||||||||||||||||||||||||||||
| 1000 | 39.0 | 2.8 | 2.4 | 51.0 | 10600 | 3.5 | 0.0176 | 1605 | 1490 | 0.098 | ||||||||||||||||||||||||||||||||||||||||||
Parameters of 0.6/1kv single core XLPE/PVC cable
| Wire | Nominal thickness of insulation (mm) |
Nominal thickness of sheath (mm) |
Overall diameter of conductor (mm) |
Approx. Weight (kg/km) |
Altemating voltage test (kV) |
Max DC, resistance of conductor at 20℃ (Ω/km) |
Rated current (A) OOO |
Rated current (A) O OO |
Voltage drop (VIA.m)×10⁻³ | |||||||||||||||||||||||||||||||||||||||||||
| Nominal cross- sectional area of conductor (mm2) |
Shape and structure |
Diameter (mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||
| 10 16 |
Circular stranded conductor |
3.7 4.7 |
1.0 1.0 |
1.4 1.4 |
9.0 10.0 |
150 215 |
3.5 3.5 |
1.83 1.15 |
71 94 |
61 81 |
2.0 1.3 |
|||||||||||||||||||||||||||||||||||||||||
| 25 35 |
5.9 7.0 |
1.2 1.2 |
1.4 1.4 |
11.3 12.3 |
310 410 |
3.5 3.5 |
0.727 0.524 |
122 151 |
105 130 |
0.84 0.63 |
||||||||||||||||||||||||||||||||||||||||||
| 50 70 |
8.5 10.01 |
1.4 1.4 |
1.4 1.4 |
14.0 15.7 |
570 770 |
3.5 3.5 |
0.387 0.268 |
183 231 |
158 199 |
0.49 0.36 |
||||||||||||||||||||||||||||||||||||||||||
| 95 120 |
11.7 13.2 |
1.6 1.6 |
1.7 1.7 |
18.4 19.8 |
1030 1280 |
3.5 3.5 |
0.193 0.153 |
284 327 |
245 282 |
0.29 0.24 |
||||||||||||||||||||||||||||||||||||||||||
| 150 185 |
14.7 16.4 |
1.8 2.0 |
1.8 1.8 |
22.8 25.1 |
1590 1950 |
3.5 3.5 |
0.124 0.0991 |
368 437 |
317 377 |
0.21 0.19 |
||||||||||||||||||||||||||||||||||||||||||
| 240 300 |
18.6 20.8 |
2.2 2.4 |
1.8 2.1 |
28.5 32.0 |
2490 3140 |
3.5 3.5 |
0.0754 0.0601 |
522
606
|
450 522 |
0.16 0.15 |
||||||||||||||||||||||||||||||||||||||||||
| 400 500 |
21.1 26.9 |
2.6 2.8 |
2.2 2.3 |
35.4 40.0 |
4140 5140 |
3.5 3.5 |
0.0470 0.0366 |
732 854 |
631 736 |
0.131 0.120 |
||||||||||||||||||||||||||||||||||||||||||
| 630 800 |
30.2 34.8 |
2.8 2.8 |
2.4 2.6 |
46.0 50.0 |
6640 8450 |
3.5 3.5 |
0.0283 0.0221 |
1024 1206 |
833 1040 |
0.111 0.104 |
||||||||||||||||||||||||||||||||||||||||||
| 1000 | 39.0 | 2.8 | 2.6 | 52.0 | 10600 | 3.5 | 0.0176 | 1379 | 1220 | 0.098 | ||||||||||||||||||||||||||||||||||||||||||
